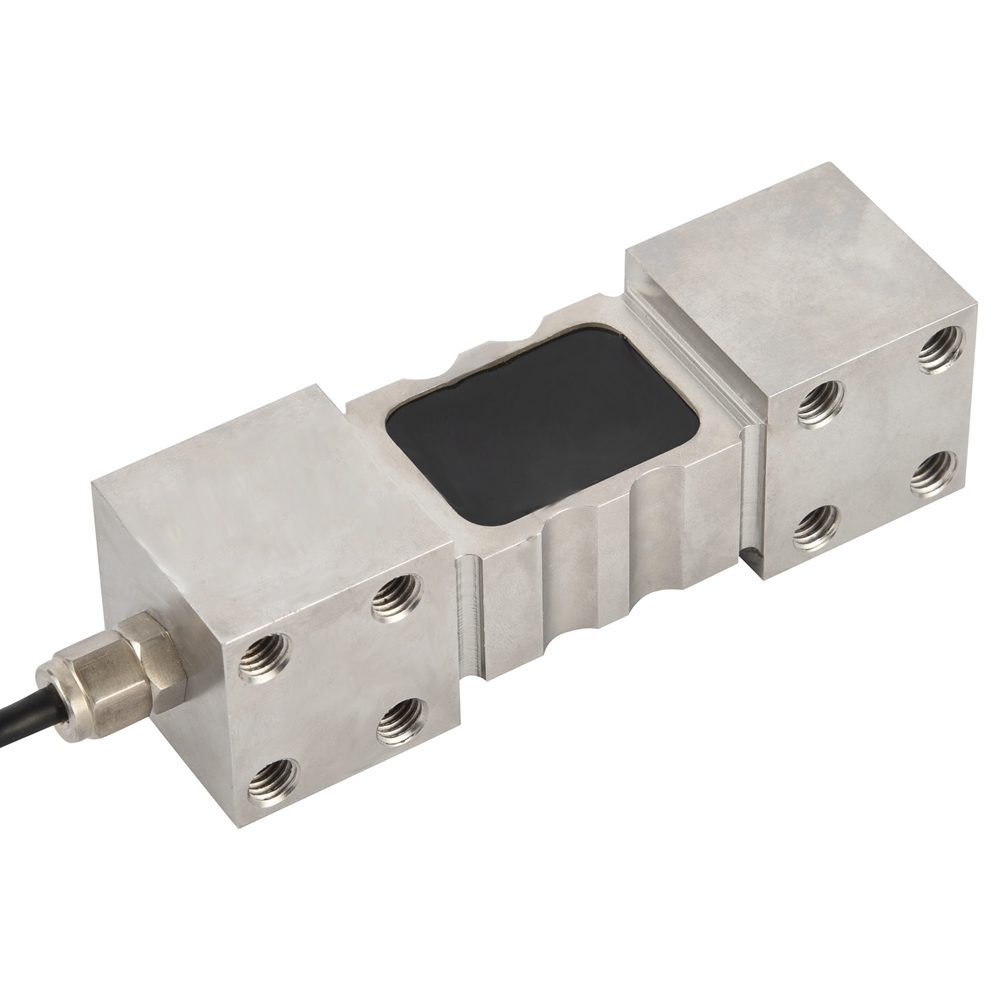

OS-660D Single point Load Cell

Single point load cell


Inquiry

Rated Capacity: 30/60/100/150/200/300kg

Accuracy Class: C3

Rated Output: 2.0±0.2mV/V

Total error: ±0.02%F.S

Creep(30min): ±0.02%F.S

Input Resistance: 380±10Ω

Output Resistance: 351±3Ω

Operating Temperature: -10~+40℃

Safe Overload: 150%F.S

Destructive Load: 200%F.S

Excitation Recommend: 4~12VDC  Max:15VDC

Cable Length: 4 wires with screen

Exc+(red) Exc-(black) Sig+(green) Sig-(white)

Construction: Alloy Steel or Stainless steel, IP67
