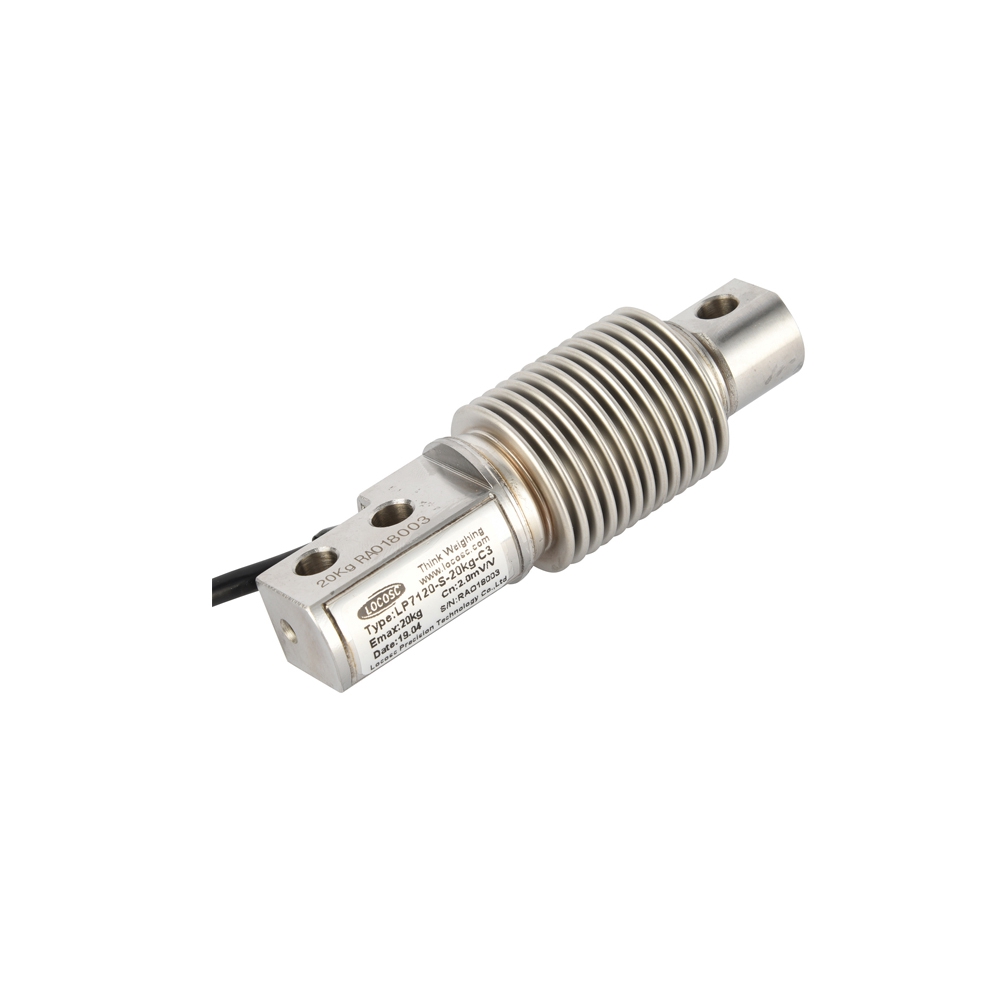

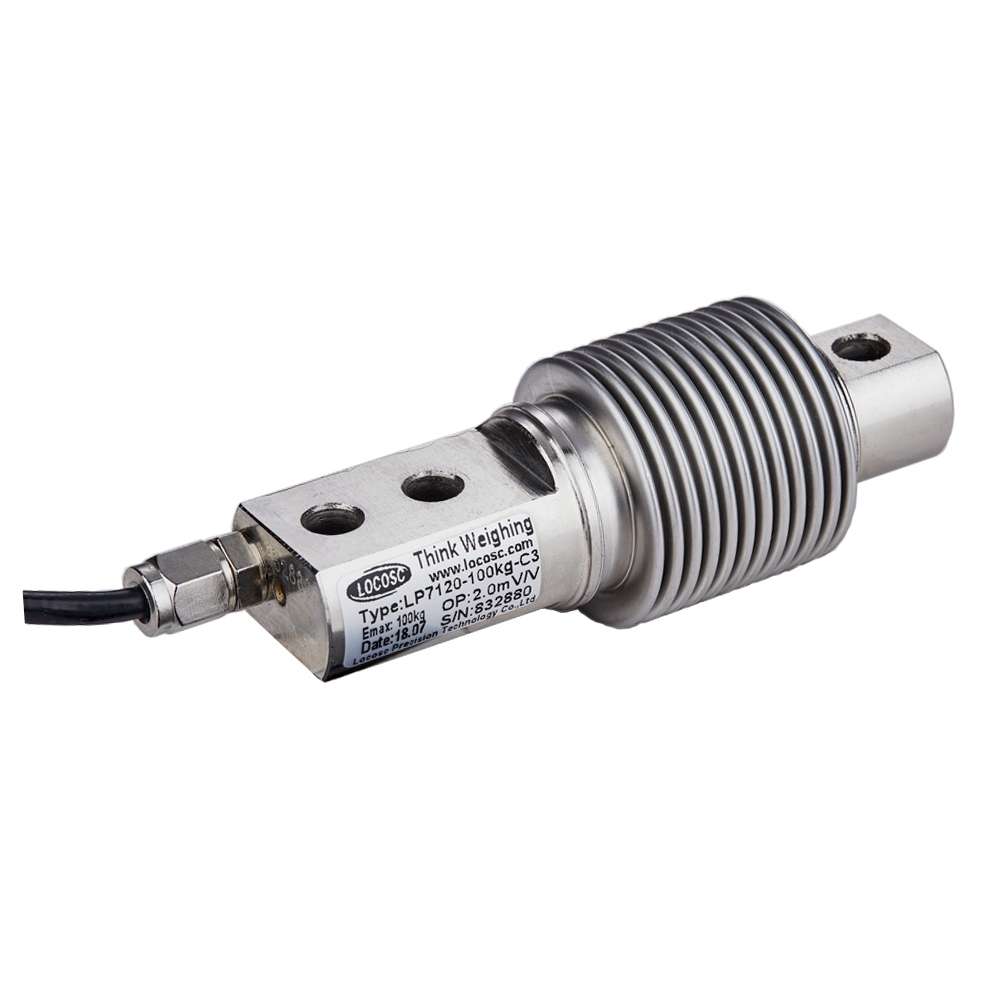

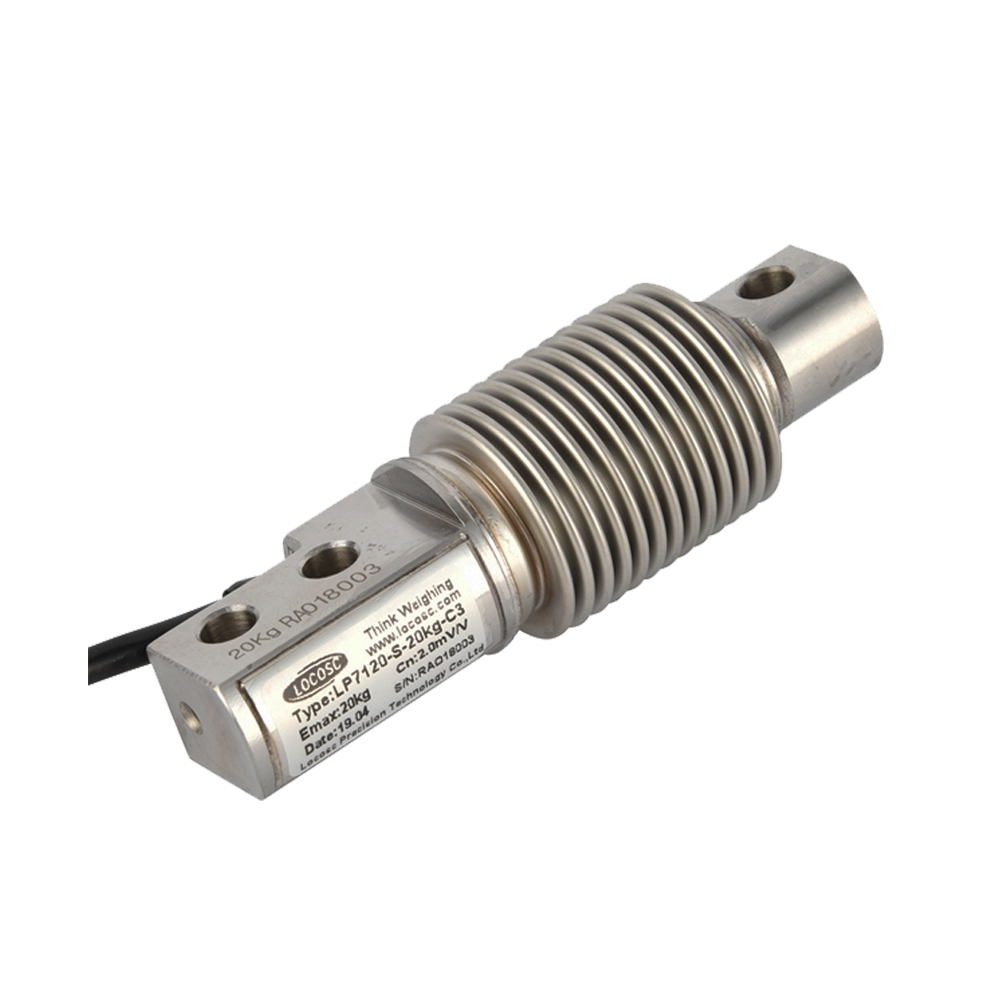

OS-120 Bending beam Load Cell

Tension load cell


Inquiry

Rated Capacity: 5/10/20/30/40/50/75/100/150/200/250/300/500kg

Accuracy Class: C3

Rated Output: 2.0±0.002 mV/V

Total error: ±0.02%F.S

Creep(30min): ±0.0016%F.S

Input Resistance: 400±10Ω

Output Resistance: 351±2Ω

Operating Temperature: -10~+40℃

Safe Overload: 150%F.S

Destructive Load: 200%F.S

Excitation Recommend: 4~12VDC  Max:15VDC

Cable Length: 0.5~3m  4 wires with shield

Exc+(red) Exc-(black) Sig+(green) Sig-(white)

Construction: Alloy Steel or Stainless steel,IP68

Application for: floor scale,hopper scale,belt scale,blending system,weighing mounting and customized need.
